設計

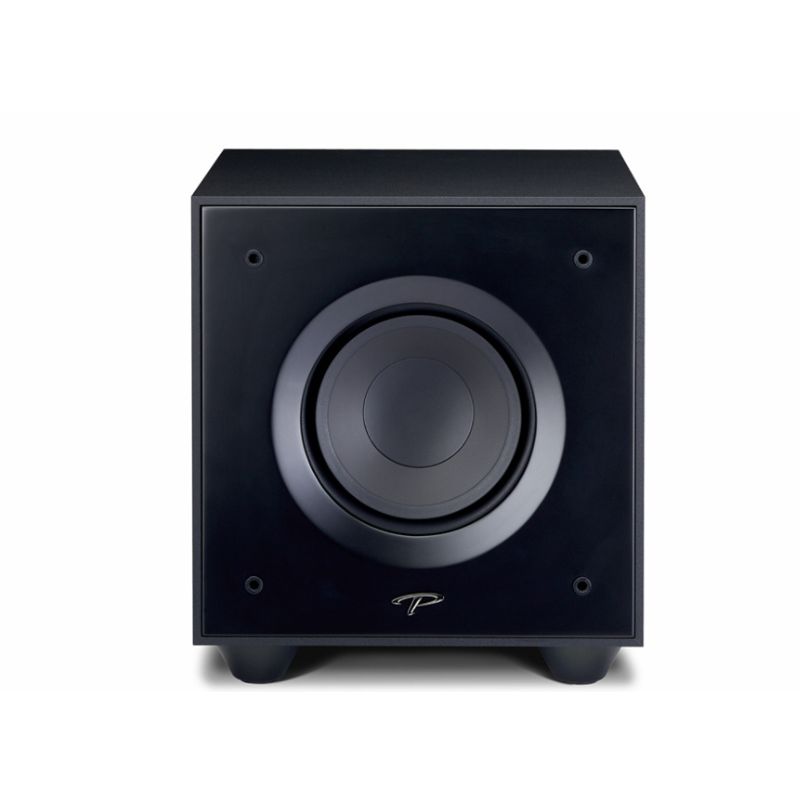

8" (203 mm) Driver, 75W RMS (150W Dynamic Peak), Class-D power amplifier
放大器
150 watts Dynamic Peak; 75 watts RMS
功能
Auto-On / Off, improved soft-clipping circuitry
響應頻率 On-Axis
±3 dB from 34Hz – 200Hz
靈敏度Room / Anechoic
100mV mono (max. volume) /
低頻驅動器
8" (203 mm) carbon-loaded polypropylene cone
分頻調整
Variable 35 Hz - 120 Hz; Bypass Option
相位調整
Variable select 0° or 180° via panel switch
輸入
Two RCA (Left and Right/LFE) for left/right lineout or Sub-Out from receiver/processor or other line-level source, Two Speaker Level (Left and Right) for input from amplifier or other speaker level source
